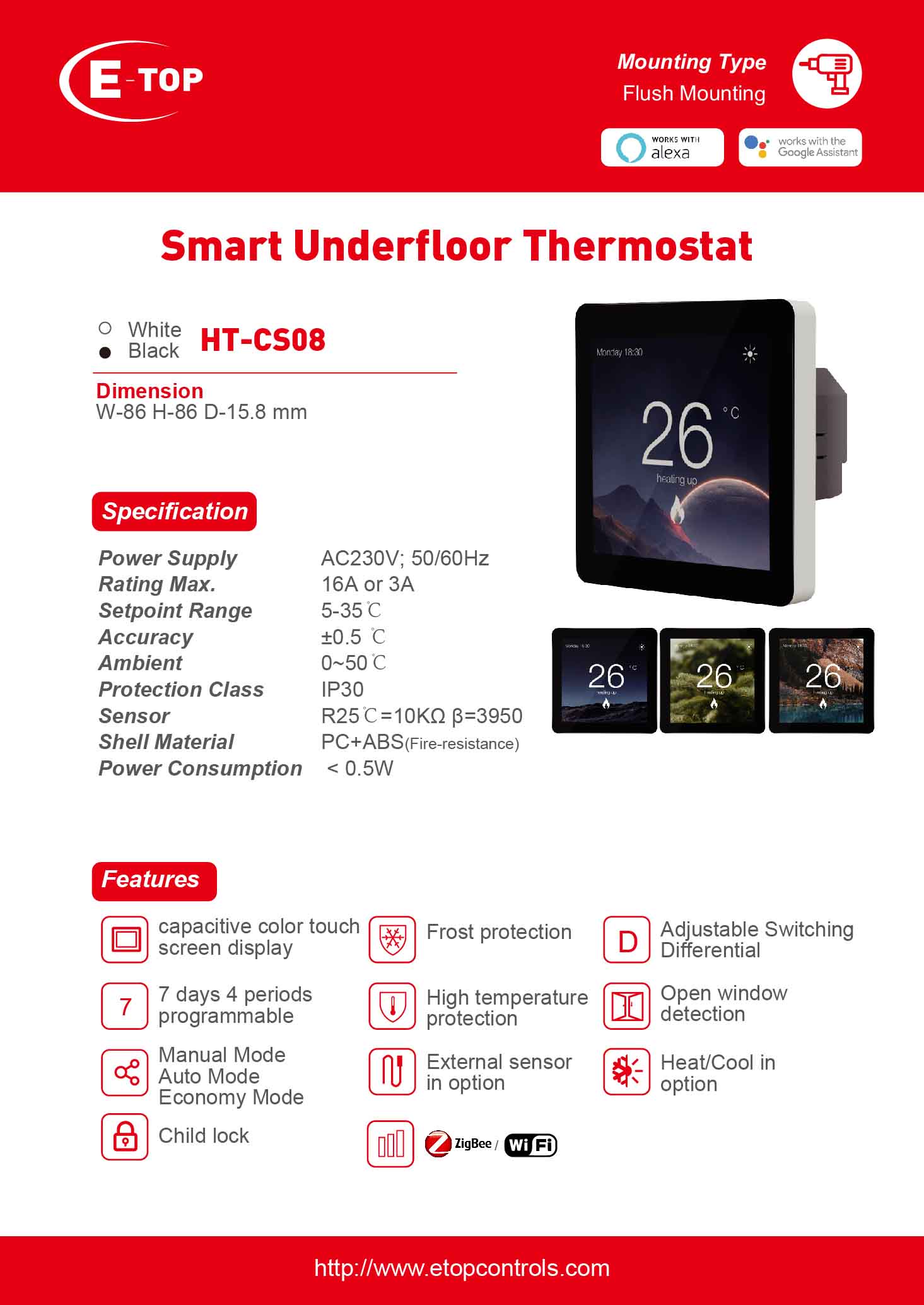

New Arrival Colorful Radiant Floor Heating Smart Thermostat

Short Description:

This is a  smart  hydronic floor heating & cooling room thermostat. It works by sensing the air temperature, switching on the heating when the air temperature falls below the thermostat setting, and switching it off once this set temperature has been reached.  With access to internet,  it allows users to select different temperatures in your home at different times of the day to meet particular user’s needs and preferences.


  • Item NO.: HT-CS08
  • Wifi Application: Tuyasmart, Smart Life
  • Voice Control: Amazon Alexa & Google Assistant
  • Frequency: 2.4Ghz
  • Power Supply: 230VAC
  • Programmability: 7 days 4 periods
  • Packing: Neutral White Box or Custom Box
  • Unit Weight: 0.35KG
  • Certificate: CE, ROHS, RED
  • Product Detail

    Technical Data

    FAQ

    Product Tags

    To meet market needs, E-Top controls release a new 4 inch color screen heating and cooling smart thermostat for air to water heat pump control system or gas boiler radiant floor heating system.

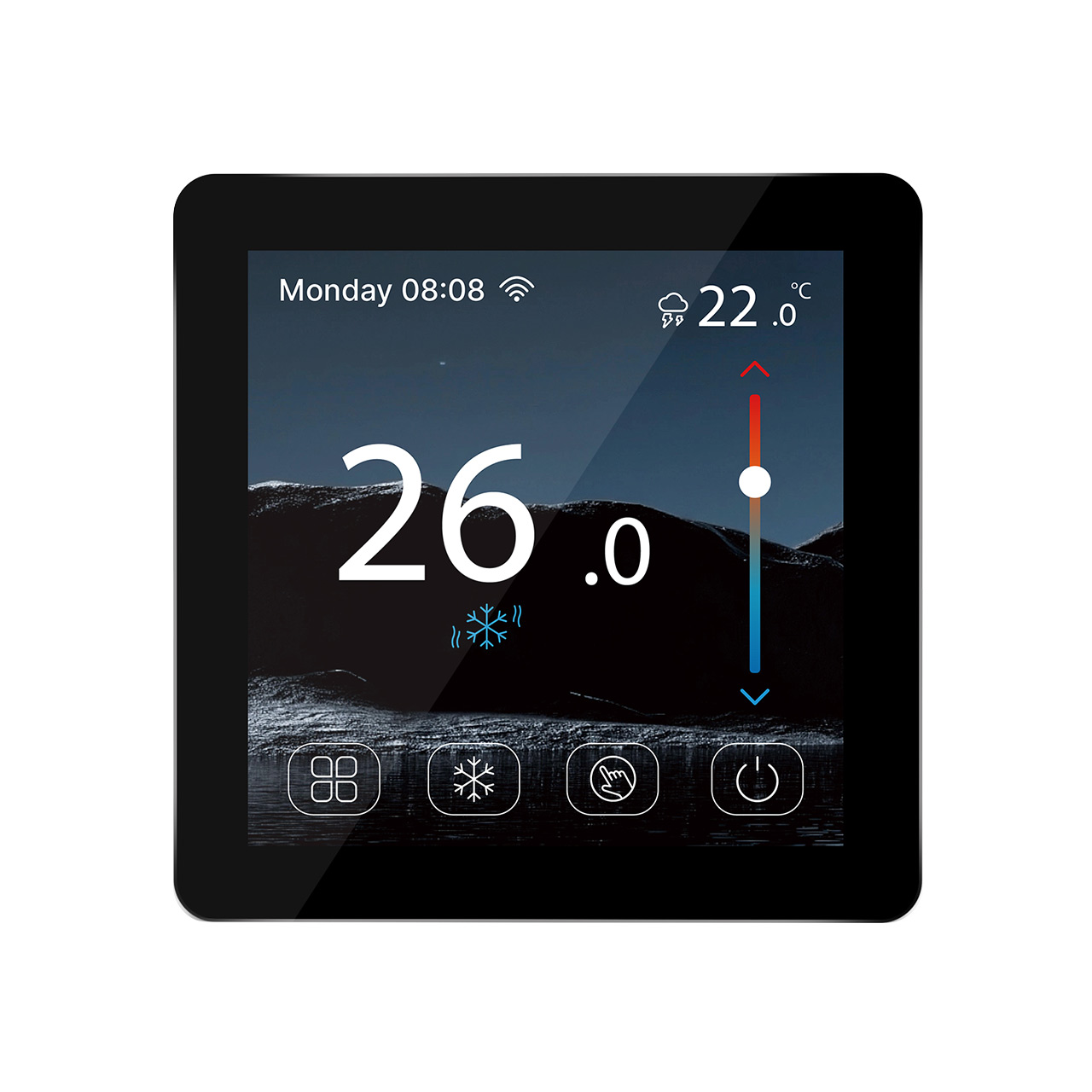

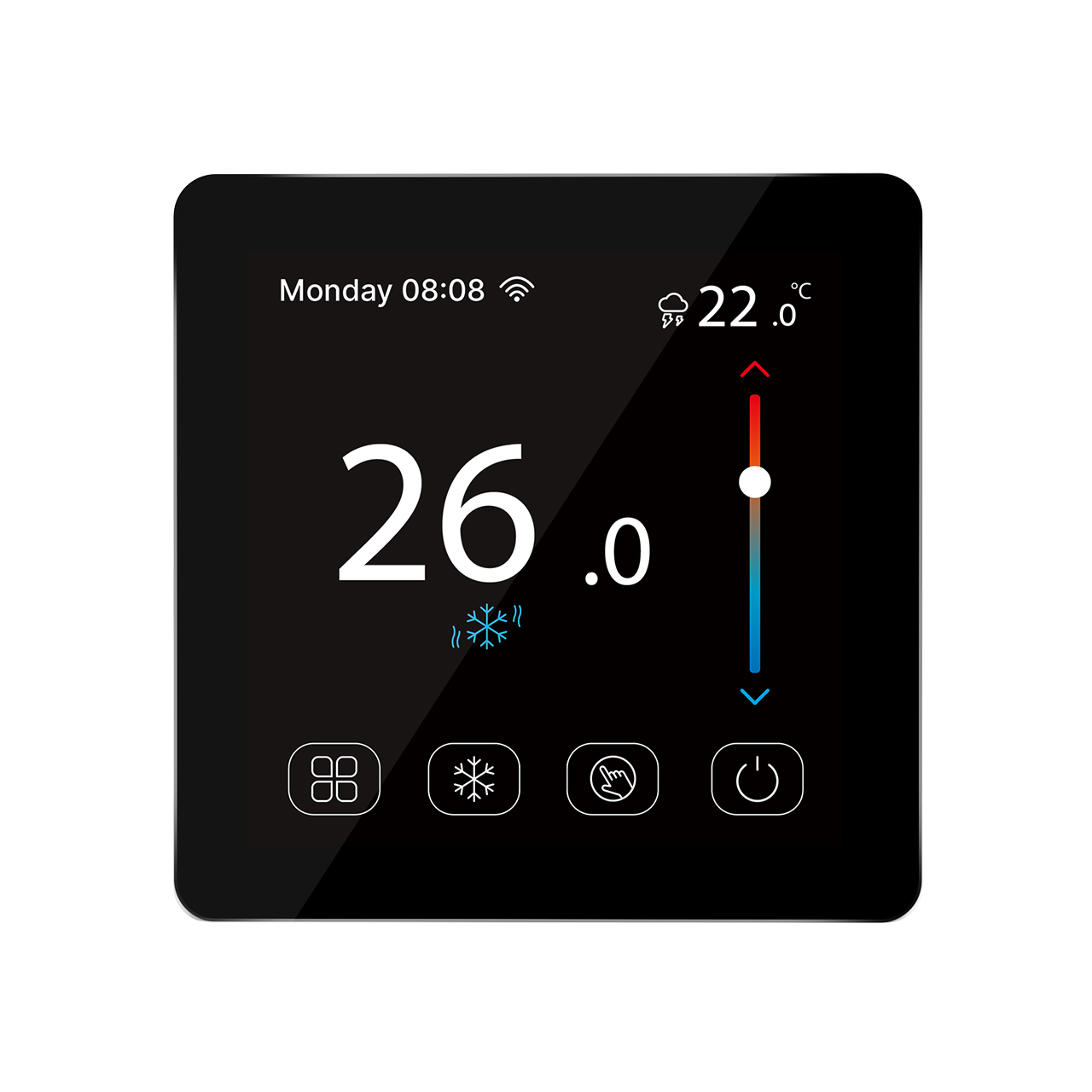

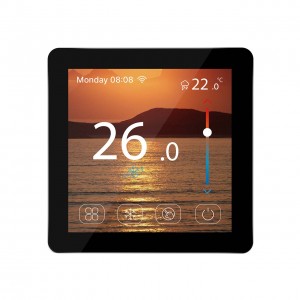

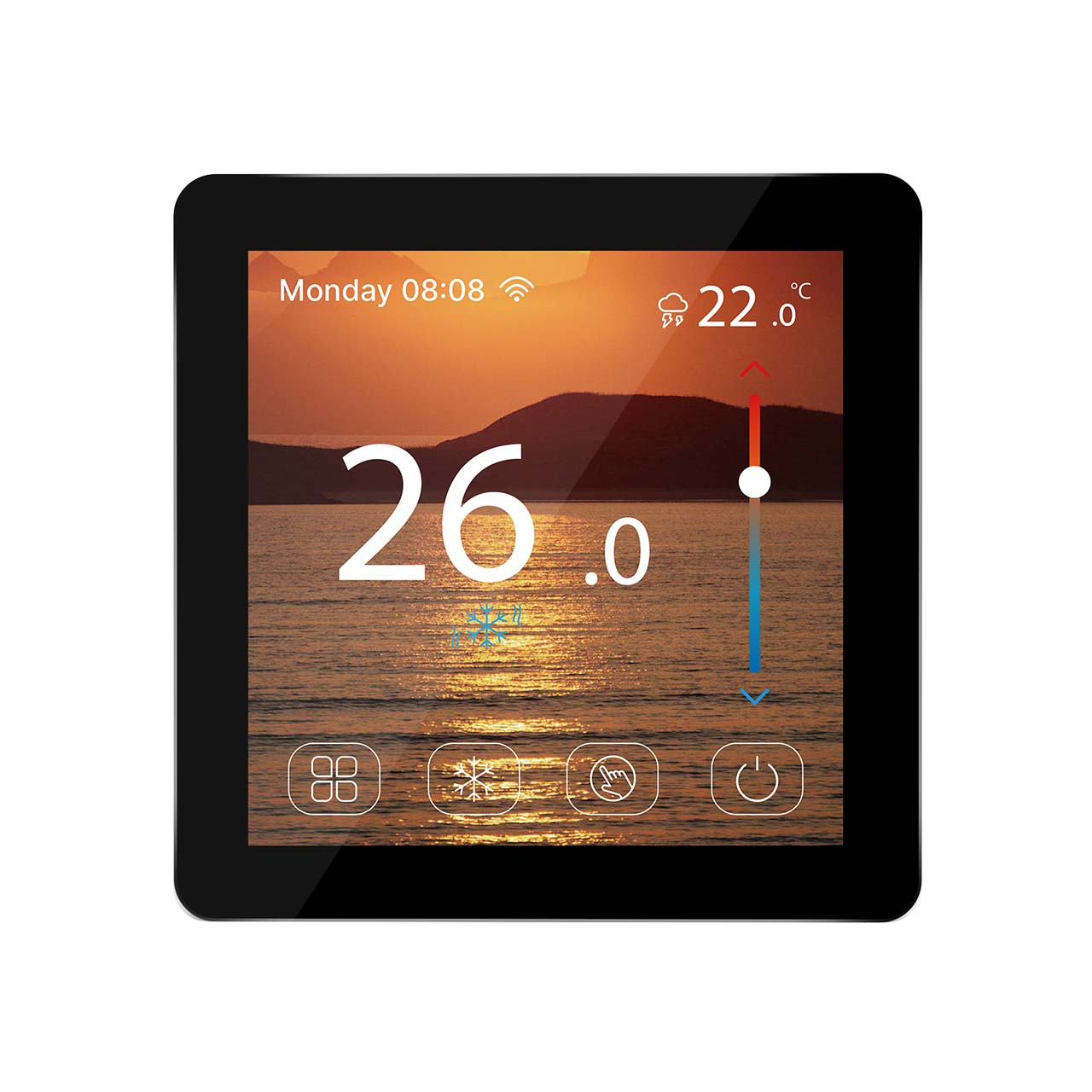

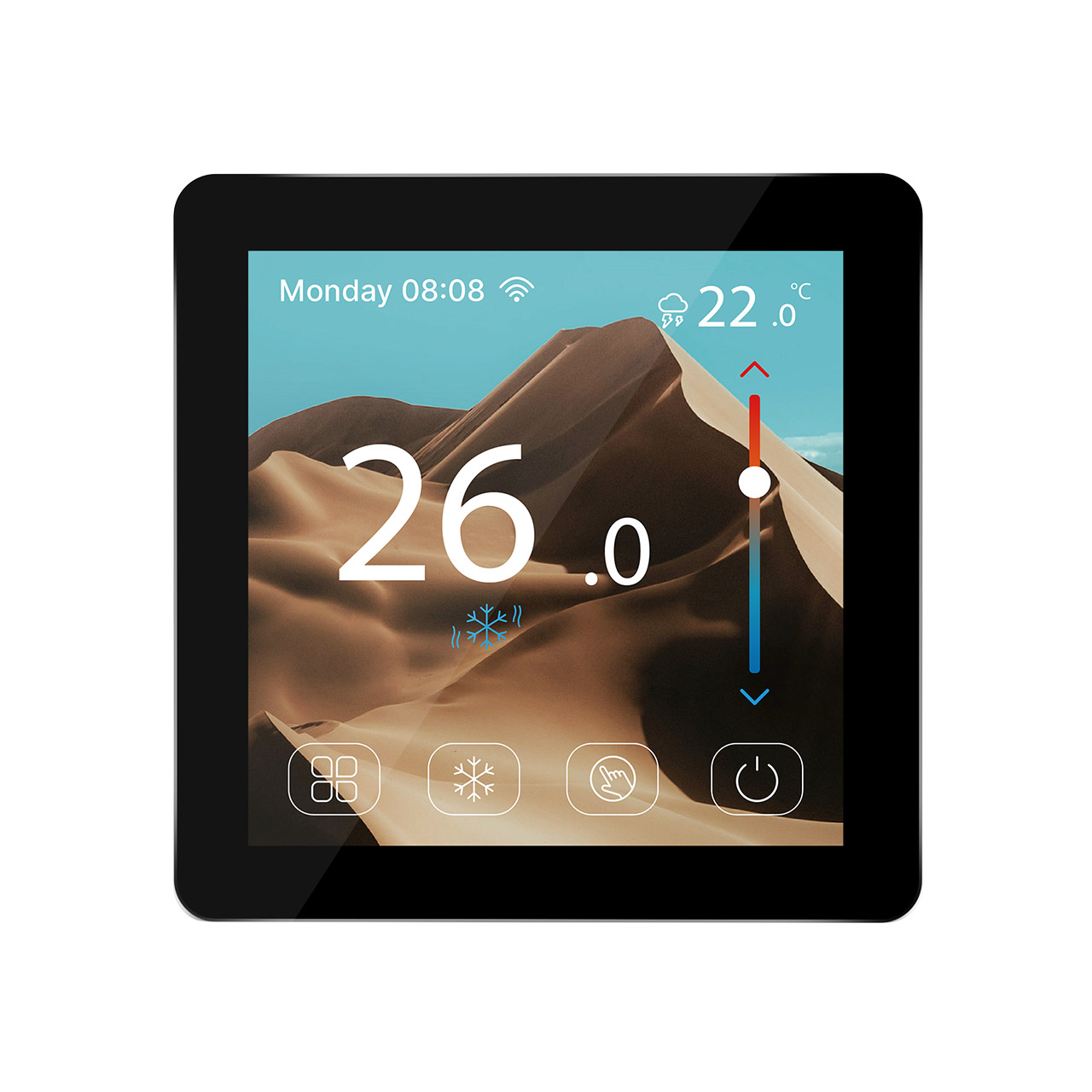

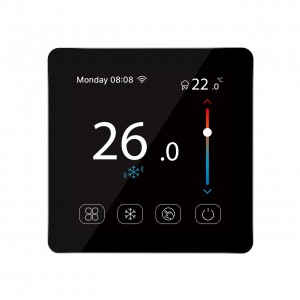

    The 4-inch extremely narrow border design is a major feature of this heat pump smart thermostat. The full touchable and large capacitive screen design bring mobile phone operation feelings. What’s more, this programmable smart thermostat has fast touch and page refresh speeds. At the same time, the company provides customized services. If the existing user interface or background image is not your preferred choice, we can provide new customized services based on the customer’s interface design.

    For the wifi remote control, E-Top provide two solutions:

    1.  Use Tuya cloud and app

    2.  Use customer’s own cloud and app.



    Functions:


    a. 3A for water/hydronic floor heating system control
    b. 7 days 4 periods programmable ( from app only)
    c. Frost protection
    d. Open window protection
    e. Child lock
    f. WIFI remote contol
    g. Alexa and Google Home voice’s control



    https://www.etopthermostat.com/water-floor-heating-thermostat/


  • Previous:
  • Next:

  •

    Name  Radiant Water Floor Heating Thermostat
    WiFi Application  TuyaSmart, Smart Life, Ecohome Life ( Tuya cloud)
    WIFI  2.4G( Don’t support 5G)
    Power Supply 230Vac
    Current
    3A NO, NC for thermal actuator control
    3A NO, NC, COM Voltage-free output for gas boiler control
    Set Temp. Range 5~35 ℃
    Ambient Temp. 0~50 ℃
    Frost Protection Temp. 5 ℃ ~15℃
    Floor Protection Temp. 20 ℃ ~80 ℃
    Sensor Select Internal sensor & External Sensor
    Sensor Type NTC β=3950 R25℃=10KΩ
    Relative Humidity 85%
    Accurancy ±0.5 ℃
    Modes MAN/Holiday/PRG Mode
    Programmability 7 days 4 periods ( Customizable)
    Window Open Detection Yes
    Child Lock  Yes
    Protection Class IP20
    Thermostat Dimension 86X86X15.8mm
    Material ABS+PC (Rohs certificated)
    Certificate CE(RED/EMC/LVD), Rohs
    OEM & ODM 1. Customized logo and package
    2. Customzied software ( change to customer’s user interface and control logic)
    3. Customized hardware ( change the PCB and schematic based on the request)

    Q: Are you manufacturer?
    Yes. ETOP is a professional ODM&OEM Thermostat manufacturer since 2003.

    Q: Can i put my brand logo on thermostats?
    A: Yes. It’s free when MOQ 500pcs.

    Q: Can i have custimized packing box?
    A: Yes. MOQ 1000pcs.

    Q: What’s the delivery time after i place the order?
    A: In 3 working days for samples and 25 days for mass production.

    Q: What’s the warranty?
    A: 1 year.

    Q: Is the thermostat wifi control?
    A: Yes. It’s smart phone app control, compatible with Android and IOS.

    Q: Does the thermostat support Amazon Alexa and Google Assisstant?
    A: Yes.
