Surface Mounted HVAC FCU Modbus EC Fan WiFi Thermostat

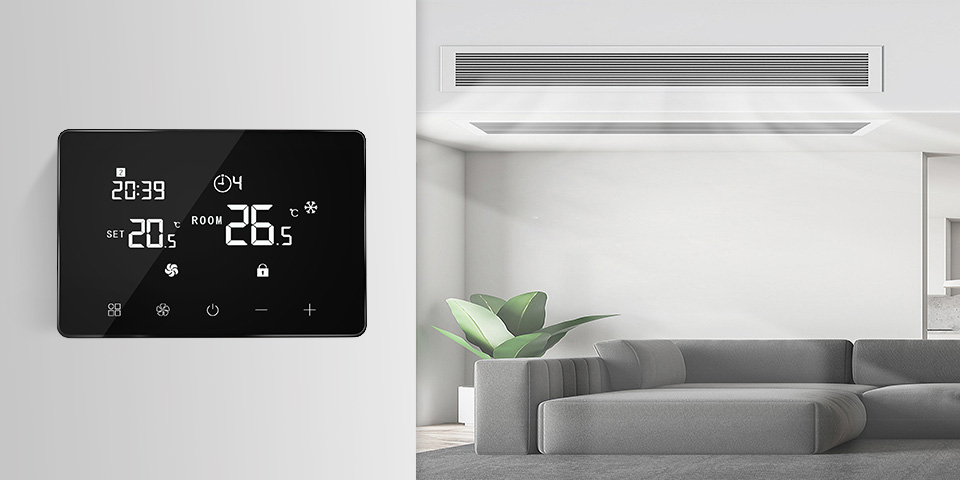

Underfloor heating and fan coil systems are popular methods of heating and cooling residential and commercial spaces. To enhance the functionality and convenience of these systems, Smart WiFi Thermostats have been developed. This smart home automation control fcu thermostat connects to your underfloor heating or fan coil system and allows you to control and monitor the temperature from anywhere using a smartphone app. It offers advanced features and automation capabilities, making it a convenient and energy-efficient solution.
Dual Compatibility:
This large LCD touch smart HVAC thermostat is designed to work with both water underfloor system and fan coil systems, providing versatility and compatibility for various setups. It allows you to connect and control the thermostat with either type of heating system, offering flexibility in installation and usage.
Heating and Cooling Capabilities:
Not only does this programmable heating and cooling thermostat regulate the temperature for heating purposes, but it also provides cooling capabilities. With this feature, you can maintain a comfortable indoor climate throughout the year, adjusting the temperature according to your preferences.
Smart WiFi Connectivity:
The integration of WiFi connectivity enables remote access and control of the thermostat through a dedicated mobile app or compatible smart home systems. You can conveniently monitor and adjust the temperature settings from anywhere, ensuring your home is preheated or cooled before your arrival.
Programmable Scheduling:
This weekly programmable FCU thermostat supports programmable scheduling, allowing you to set different temperature levels based on your daily routine. You can create personalized heating and cooling schedules for each day of the week, optimizing energy consumption by automatically adjusting the temperature when needed.
User-Friendly Interface:

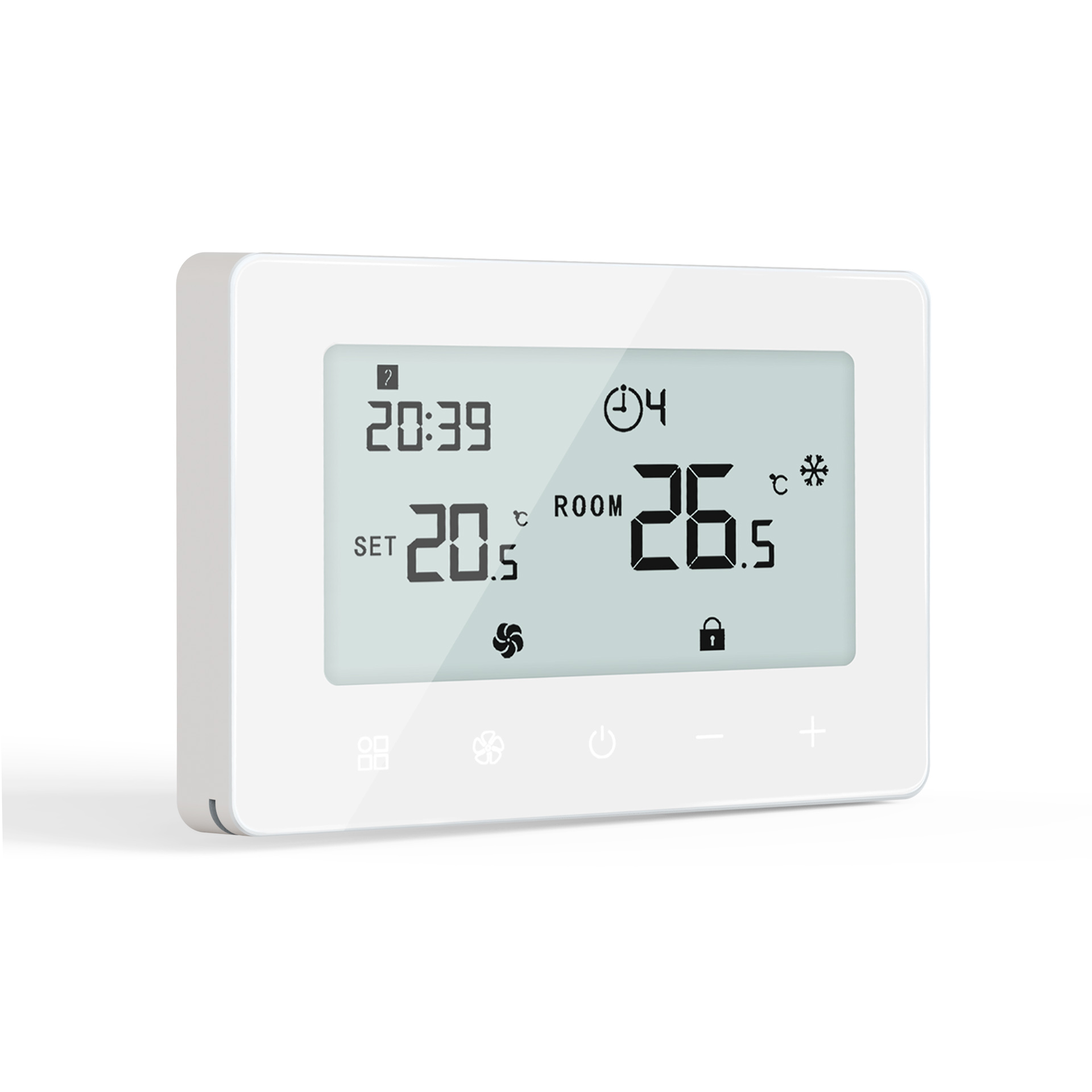

This 230Vac wall mounted smart room thermostat features a user-friendly interface, typically with a touchscreen or push-button controls for easy operation. The information displayed on the screen is clear and intuitive, providing real-time temperature readings and status updates.
Functions:
- Large display can be clearly read with the background lighting.
- Five buttons make it easy to use.
- Adjustable Manual Mode & PRG mode
- 3 Fan Speed and Auto Fan Selection, compatible with on/off fan or EC fan.
- 2 pipe or 4 pipe in option
- 4 periods of each day programmable
- Child lock
- Modbus in optional
- External sensor in optional
- Keycard in optional
- WiFI in optional
- The display shows the set temperature as well as the measured temperature, time.
- Temperature display in degrees Celsius.
Wiring:
Compatible with on/off fan, EC fan , heat valve, cold valve, exteranl water probe, keycard, modbus

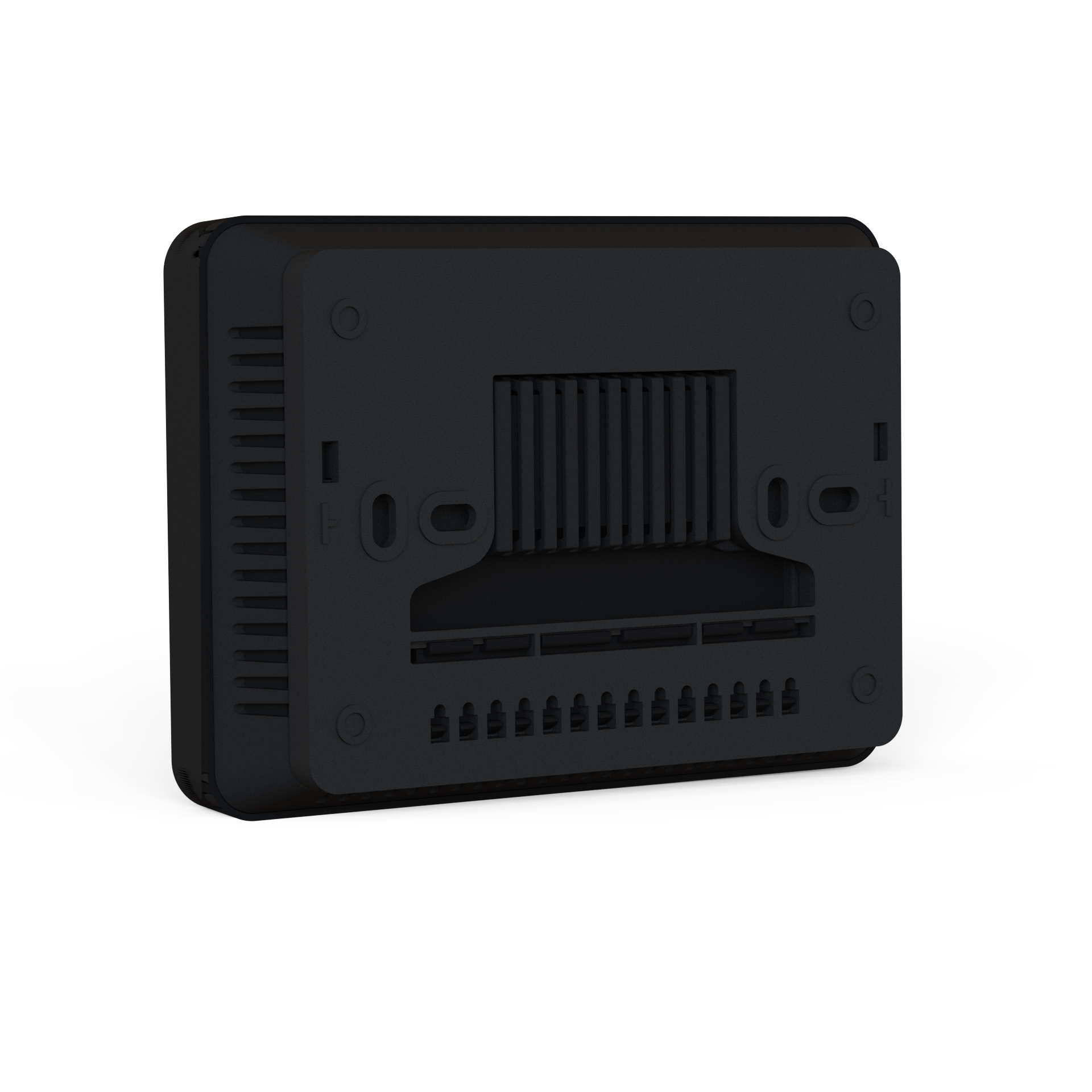

Installation : Surface mounted

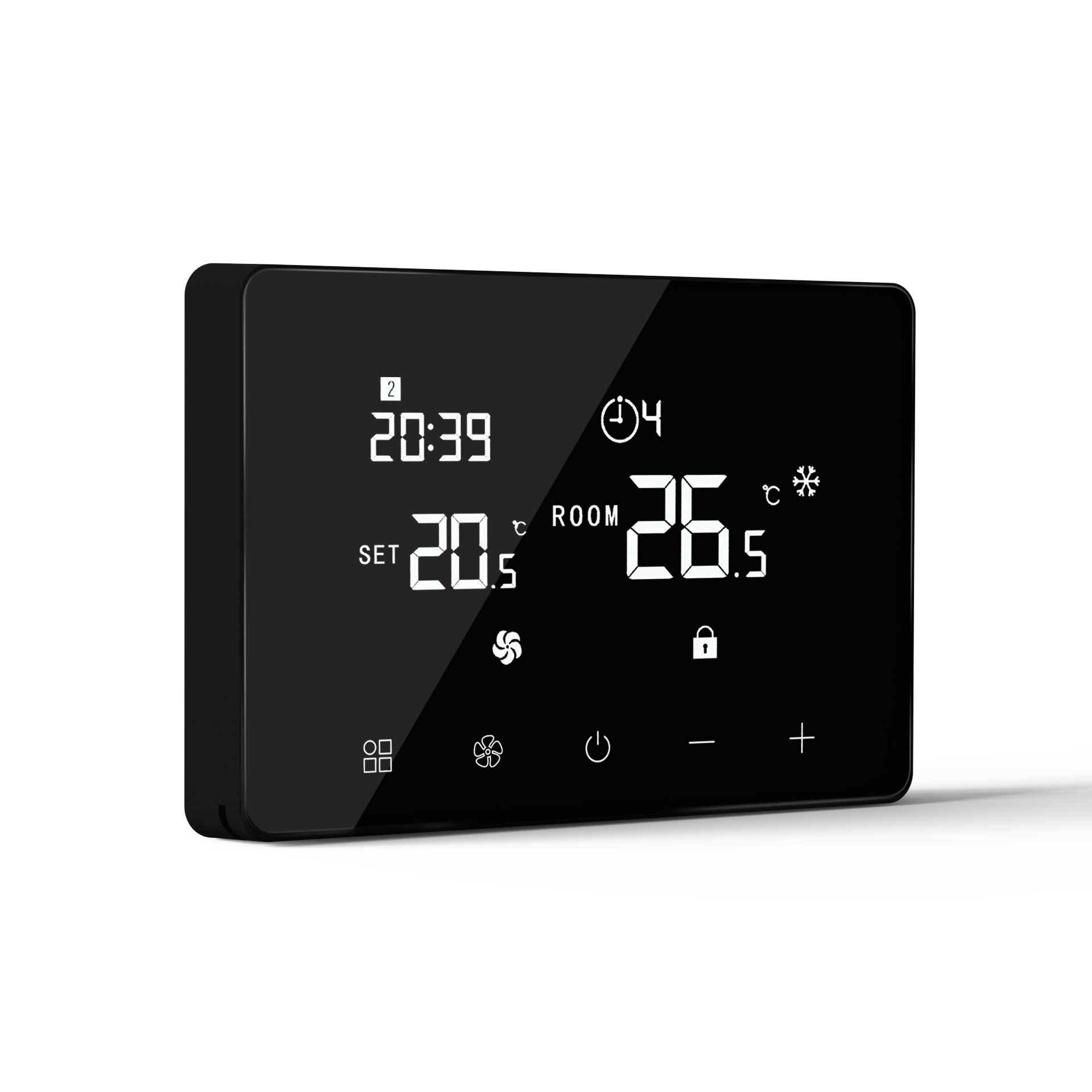

| Display | Tempered Glass Touch Display |
| WiFi Application | TuyaSmart, Smart Life, Ecohome Life ( Tuya cloud) |
| WIFI | 2.4G( Don’t support 5G) |
| Power Supply | 230Vac |
| Current | 5(3) A for fan coil control |
| 5(3) A for heat valve or cold valve control | |
| 0-10V for EC fan control | |
| Set Temp. Range | 5~35 ℃ |
| Ambient Temp. | 0~50 ℃ |
| Frost Protection Temp. | 5 ℃ ~15℃ |
| Floor Protection Temp. | 20 ℃ ~80 ℃ |
| Sensor Select | Internal sensor & External Sensor |
| Sensor Type | NTC β=3950 R25℃=10KΩ |
| Relative Humidity | 85% |
| Accurancy | ±0.5 ℃ |
| Modes | MAN/Holiday/PRG Mode |
| Programmability | 7 days 4 periods ( Customizable) |
| Window Open Detection | Yes |
| Child Lock | Yes |
| Protection Class | IP20 |
| Thermostat Dimension | 86X86X16.1mm |
| Material | ABS+PC (Rohs certificated) |
| Certificate | CE(RED/EMC/LVD), Rohs |
| OEM & ODM | 1. Customized logo and package |
| 2. Customzied software ( change to customer’s user interface and control logic) | |
| 3. Customized hardware ( change the PCB and schematic based on the request) |
Q: Are you manufacturer?
Yes. ETOP is a professional ODM&OEM Thermostat manufacturer since 2003.
Q: Can i put my brand logo on thermostats?
A: Yes. It’s free when MOQ 500pcs.
Q: Can i have custimized packing box?
A: Yes. MOQ 1000pcs.
Q: What’s the delivery time after i place the order?
A: In 3 working days for samples and 25 days for mass production.
Q: What’s the warranty?
A: 1 year.
Q: Is the thermostat wifi control?
A: Yes. It’s smart phone app control, compatible with Android and IOS.
Q: Does the thermostat support Amazon Alexa and Google Assisstant?
A: Yes.
